Polyurethane Foam Extrusion Board Processing Engraving Machine 30100

Name: Polyurethane Foam Extrusion Board Processing Engraving Machine 30100
Brand: SUBA
Price: 1 USD

China Polyurethane Foam Extrusion Board Processing Engraving Machine 30100 factory

Brand Name : SUBA

Model Number : SUBA-30100

Certification : CE

Place of Origin : Qingdao, China

MOQ : 1

Price : communication

Payment Terms : ,T/T,L/C

Supply Ability : 100set

Delivery Time : 5-8 work days

Packaging Details : Wooden box packaging

Workpiece Size : Large

Axis : 4

Size : 3000*10000*300mm

Control System : CNC

Accuracy : High

Center Type : Vertical

Contact Now

Polyurethane foam extrusion board processing engraving machine

Product description:

The processing requirements of the inner lining board of the processed car body panel composite board, such as the polyurethane foam or extruded board, the plastic and wooden board, the sawing, drilling and groove-making of the wooden board.

Applicable industries:

Suitable for the processing of aerospace, rail transit, vehicle interiors, yachts and ships, special vehicles (such as refrigerated trucks, RVs, modified vehicles, vaccine vehicles, etc.) panels; also applicable for the intelligent production of composite materials in industries such as anti-corrosion equipment, military equipment, medical industry, instruments and meters, new energy, etc.

Name	Polyurethane foam extrusion board processing engraving machine
Effectiveworkbench size	300010000300mm(Effective workbench size) Can be customized
Z-axis travel	200mm
Dust cleaning	The engraving machine head is fully sealed.
Workbench surface	Vacuum suction with T-groove table (suction and clamping dual-use), can be zoned according to the size of the processed board.
Spindle motor	9KW tool change spindle
magazine	8 disk tool magazine (automatic tool change in program)
Spindle speed	0-12000 rpm/min
Saw motor	Four-axis control rotary saw(7.5KW)
Transmission system	The Z-axis is driven by a screw, while the X/Y axes are driven by rack and pinion
Control system	High-End Machining Center Dedicated System
Processing speed	8m/min to 45m/min (processing speed is determined based on the tools and materials used by the customer)
Distribution Cabinet	Follow-up distribution cabinet, convenient for workers to operate.
oftware	Precision Engraving/WenTai/UG/TYPE3/MASTERCAM and other internationally G-code
Working voltage	Produce according to the voltage of the customer's location.

Polyurethane Foam Extrusion Board Processing Engraving Machine 30100

Product Tags:

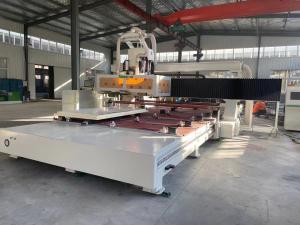

Polyurethane Foam Extrusion Board Processing Engraving Machine 30100 Images
